Load security for every application

Cargo security plays an important role in the transport chain. To prevent loss of value, goods must be properly secured during transport by land, sea and air. Ferrotec dunnage bags close the air space between the individual pallets, preventing them from tipping over or slipping. Lashing straps can also be used to restrict the movement of pallets. For refrigerated containers, Ferrotec GmbH offers an ideal supplement to the lashing strap in the form of anchor points. To protect cardboard boxes and sensitive goods, edge protection angles and strips offer an optimal solution.



Anchor points

Anchor point Basic

✓ Made of steel S235JR
✓ Mounting on ventilation slots in refrigerated containers
✓ Opening of the anchor point is 25 mm
✓ Color is black
✓ Made in Germany
Ankerpunkt Basic Studio

Anchor point Business

✓ Made of steel S235JR, ring nut galvanized
✓ Mounting on ventilation slots in refrigerated containers
✓ Opening of the anchor point is 25 mm
✓ Steel plate black, ring nut galvanized
✓ Made in Germany
Ankerpunkt Business Studio

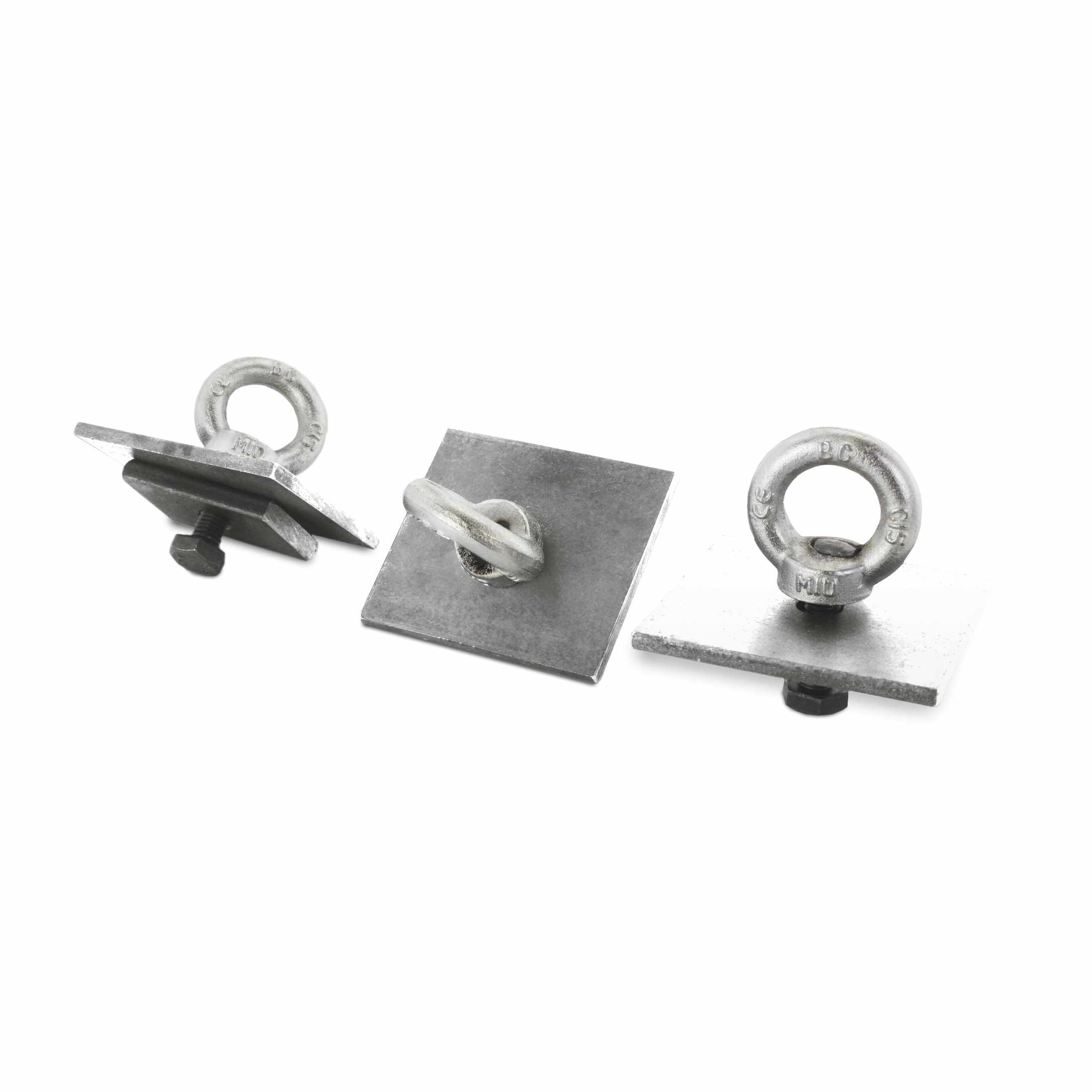

Anchor point Premium

✓ Made of galvanized steel S235JR
✓ Mounting on ventilation slots in refrigerated containers
✓ Opening of the anchor point is 25 mm
✓ Galvanized material protects against corrosion
✓ Made in Germany
Ankerpunkt Premium Studio

Corner Protection

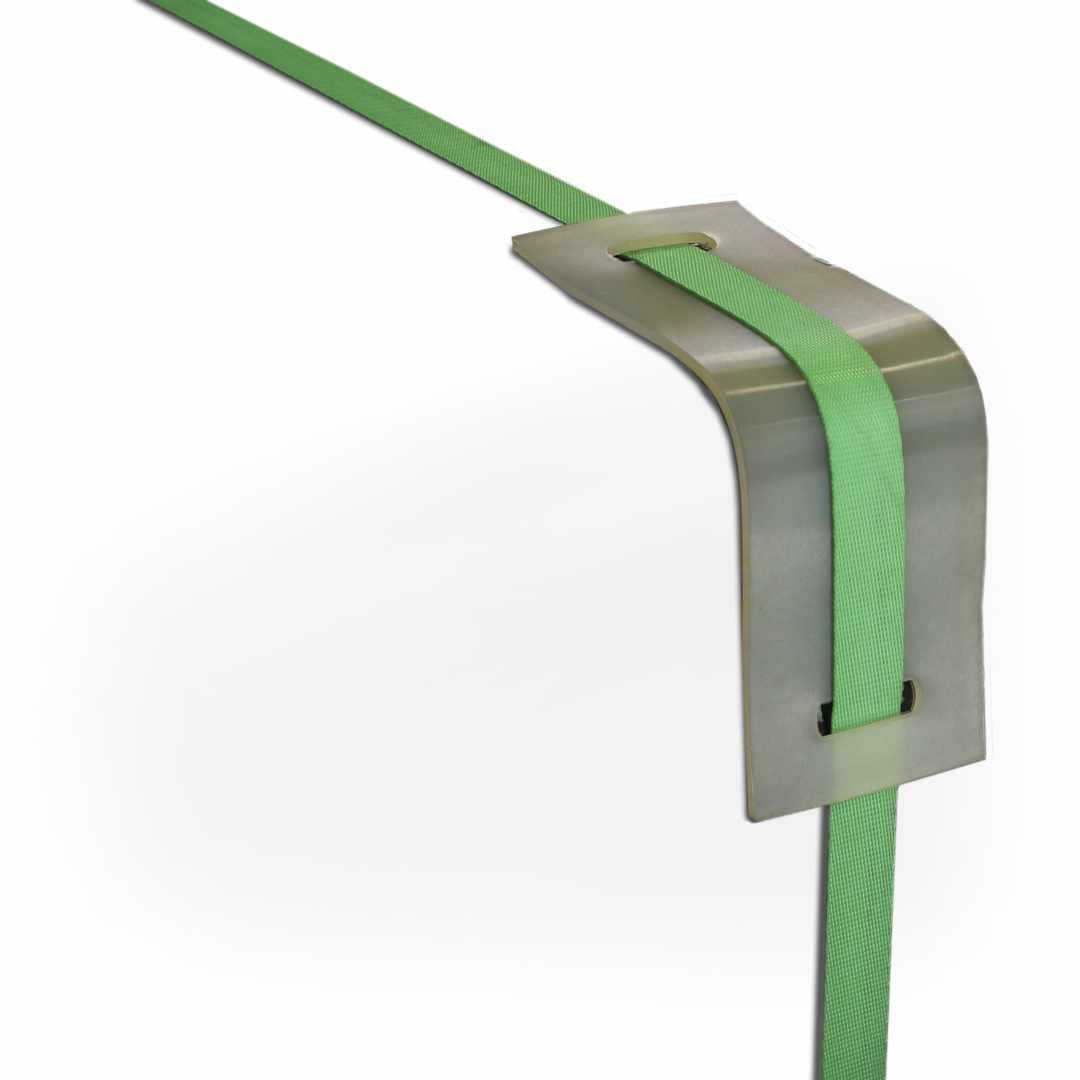

Corner Protector KSS 250.35D

✓ Corner protection made of PU
✓ Dimensions: 80 mm x 250 mm
✓ With closed fixation for the belt
✓ For lashing strap width 35 mm
✓ Corner protection adapts to the lashing strap
Kantenschutz KSS 250.35 Studio

Corner Protector KSS 280.50D

✓ Corner protection made of PU
✓ Dimensions: 100 mm x 280 mm
✓ With closed fixation for the belt
✓ For lashing strap width 50 mm
✓ Corner protection adapts to the lashing strap
Kantenschutz KSS 280.50 Studio

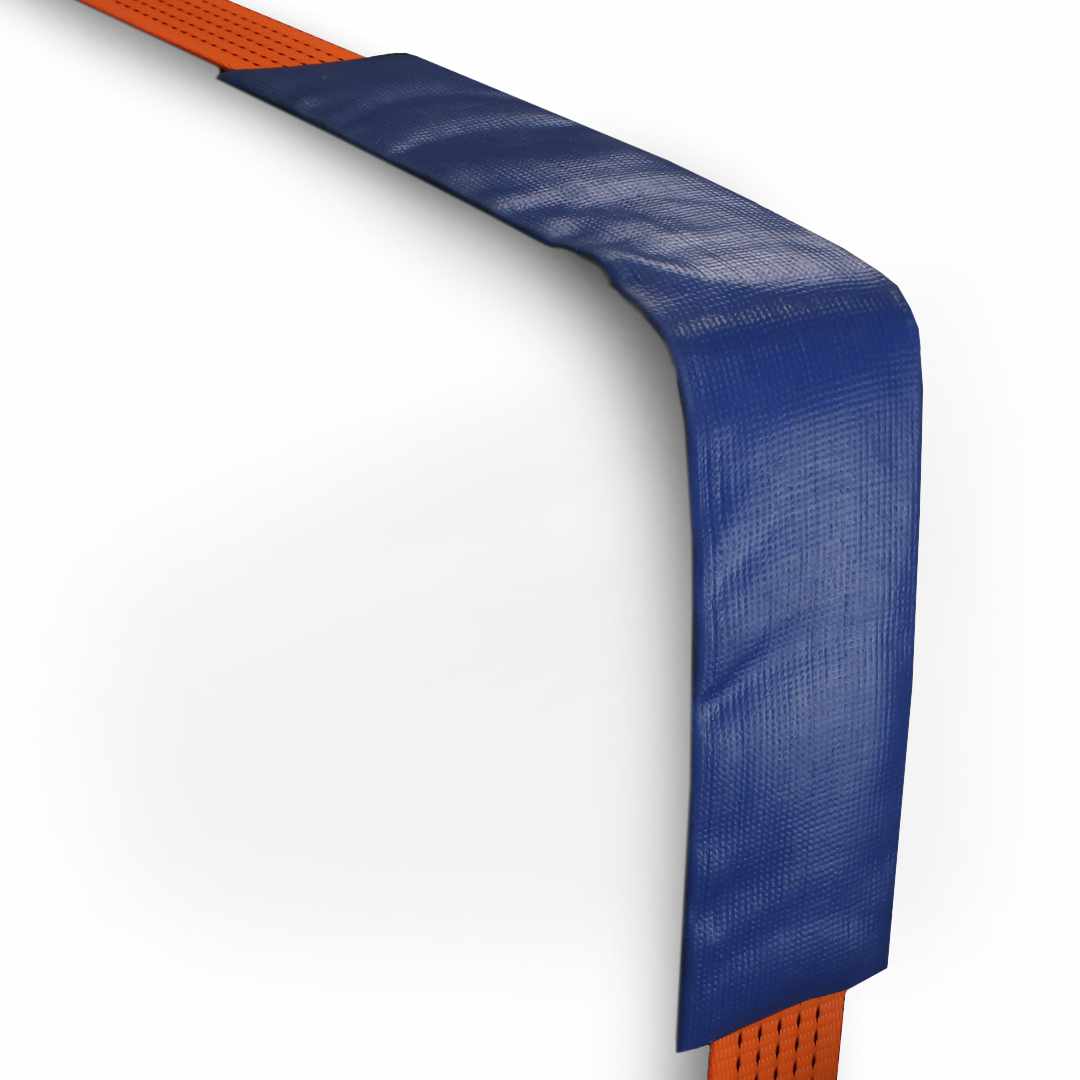

Corner Protector KSS 50.25F

✓ Corner protection made of PVC
✓ Dimensions: 50 mm x 500 mm
✓ With hose fixation for the belt
✓ For lashing strap width 25 mm
✓ Corner protection adapts to the lashing strap
Kantenschutz KSS 50.25 Studio

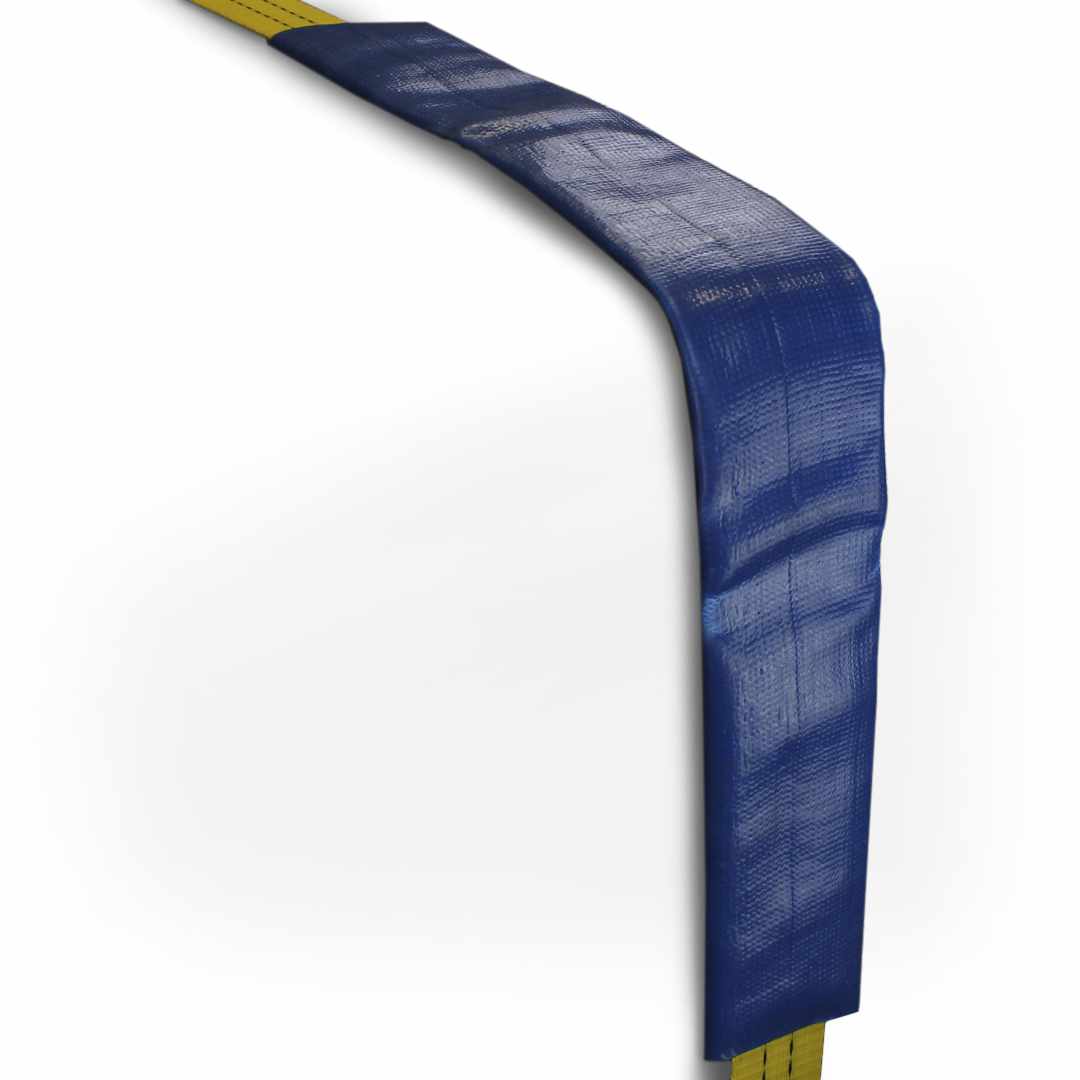

Corner Protector KSS 65.35F

✓ Corner protection made of PVC
✓ Dimensions: 65 mm x 500 mm
✓ With hose fixation for the belt
✓ For lashing strap width 35 mm
✓ Corner protection adapts to the lashing strap
Kantenschutz KSS 65.35 Studio

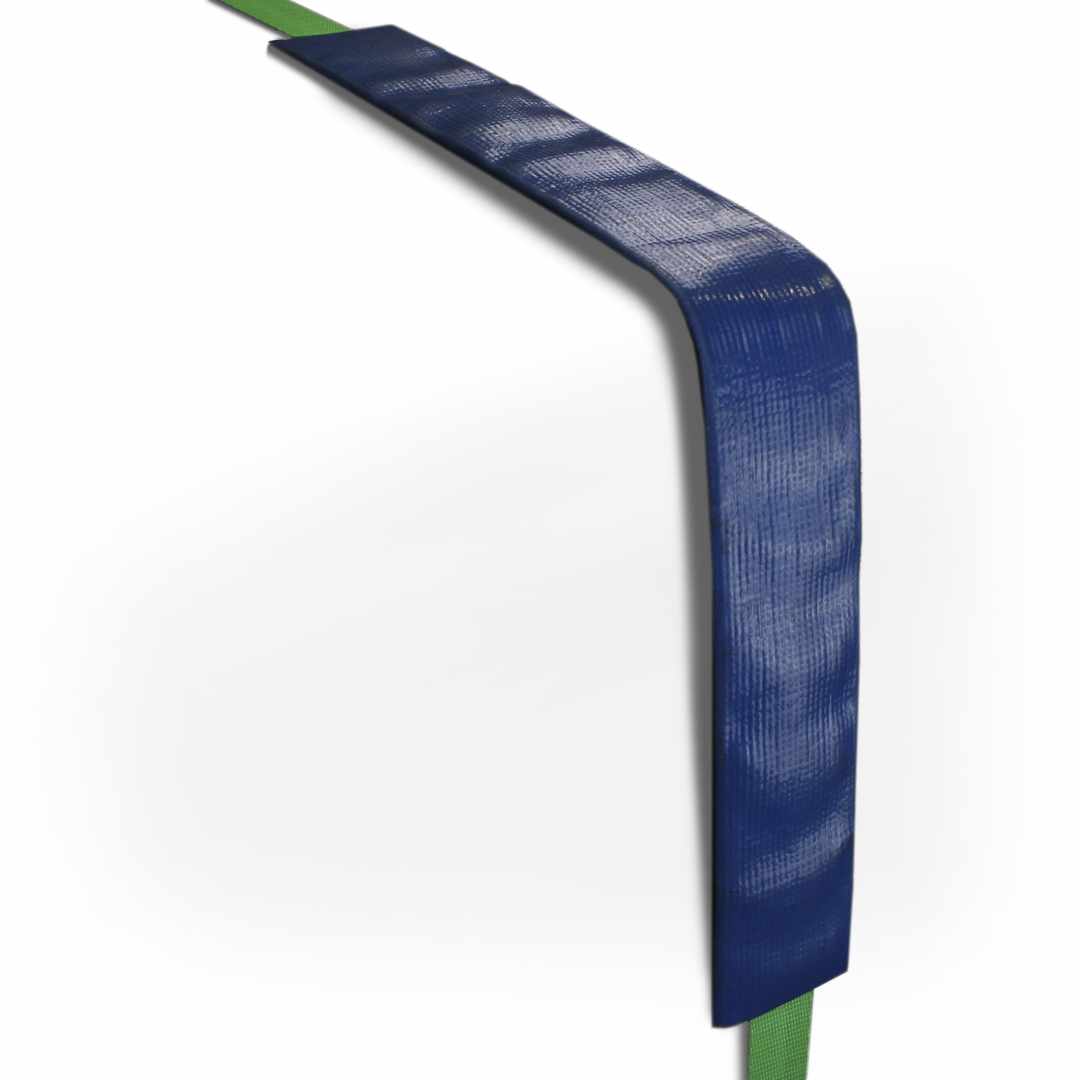

Corner Protector KSS 75.50F

✓ Corner protection made of PVC
✓ Dimensions: 75 mm x 500 mm
✓ With hose fixation for the belt
✓ For lashing strap width 50 mm
✓ Corner protection adapts to the lashing strap
Kantenschutz KSS 75.50 Studio

Corner Protector KSW 101×101.90B

✓ Corner protection made of PE
✓ Dimensions: 90 mm x 101 mm x 101 mm
✓ With open fixation for the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 101x101.90b Studio

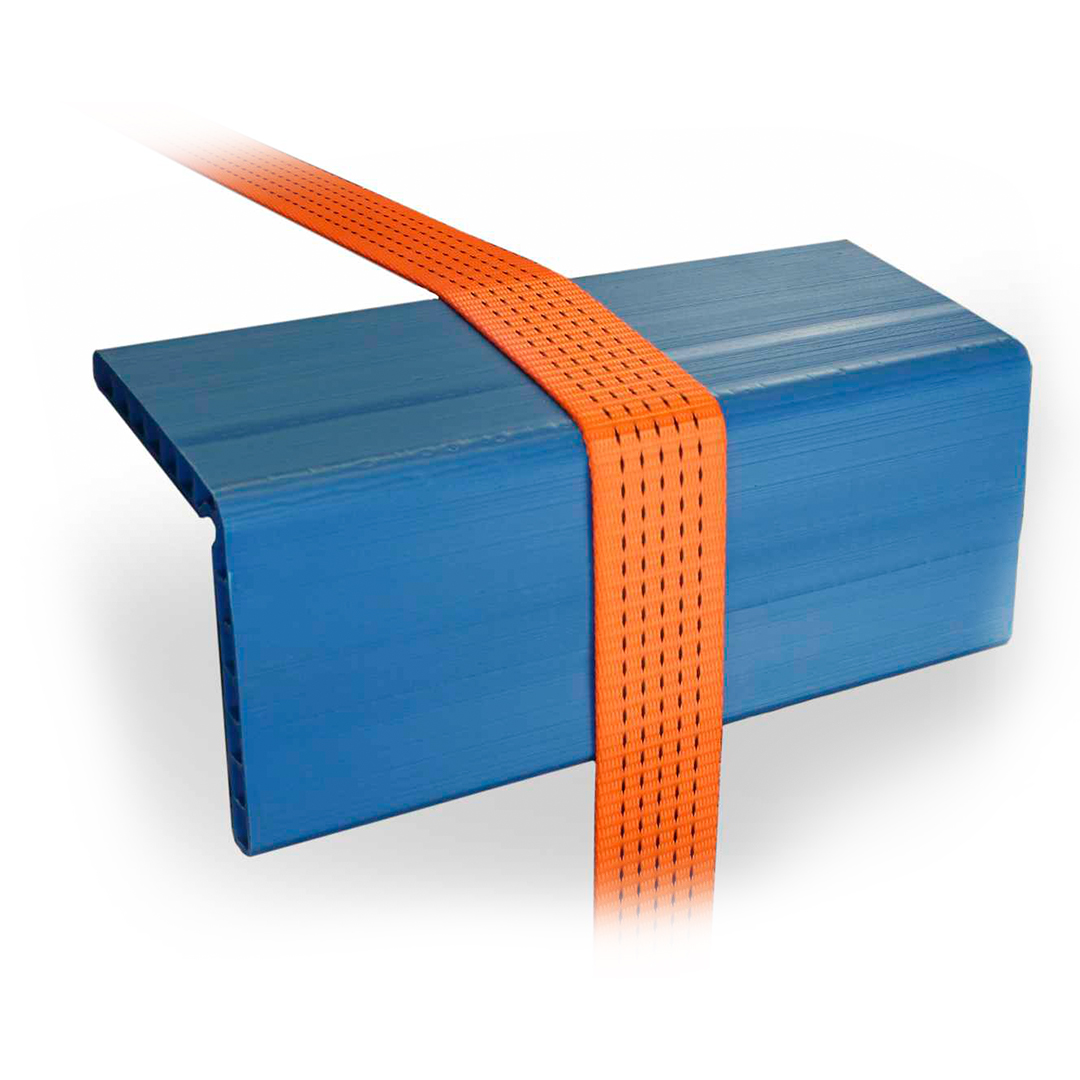

Corner Protector KSW 115×115.90A

✓ Corner protection made of HDPE in different colors
✓ Dimensions: width x 115 mm x 115 mm
✓ Especially easy to use
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 115x115.90a Studio

Corner Protector KSW 130×130.90B

✓ Corner protection made of PE
✓ Dimensions: 90 mm x 130 mm x 130 mm
✓ With open fixation for the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 130x130.90b Studio

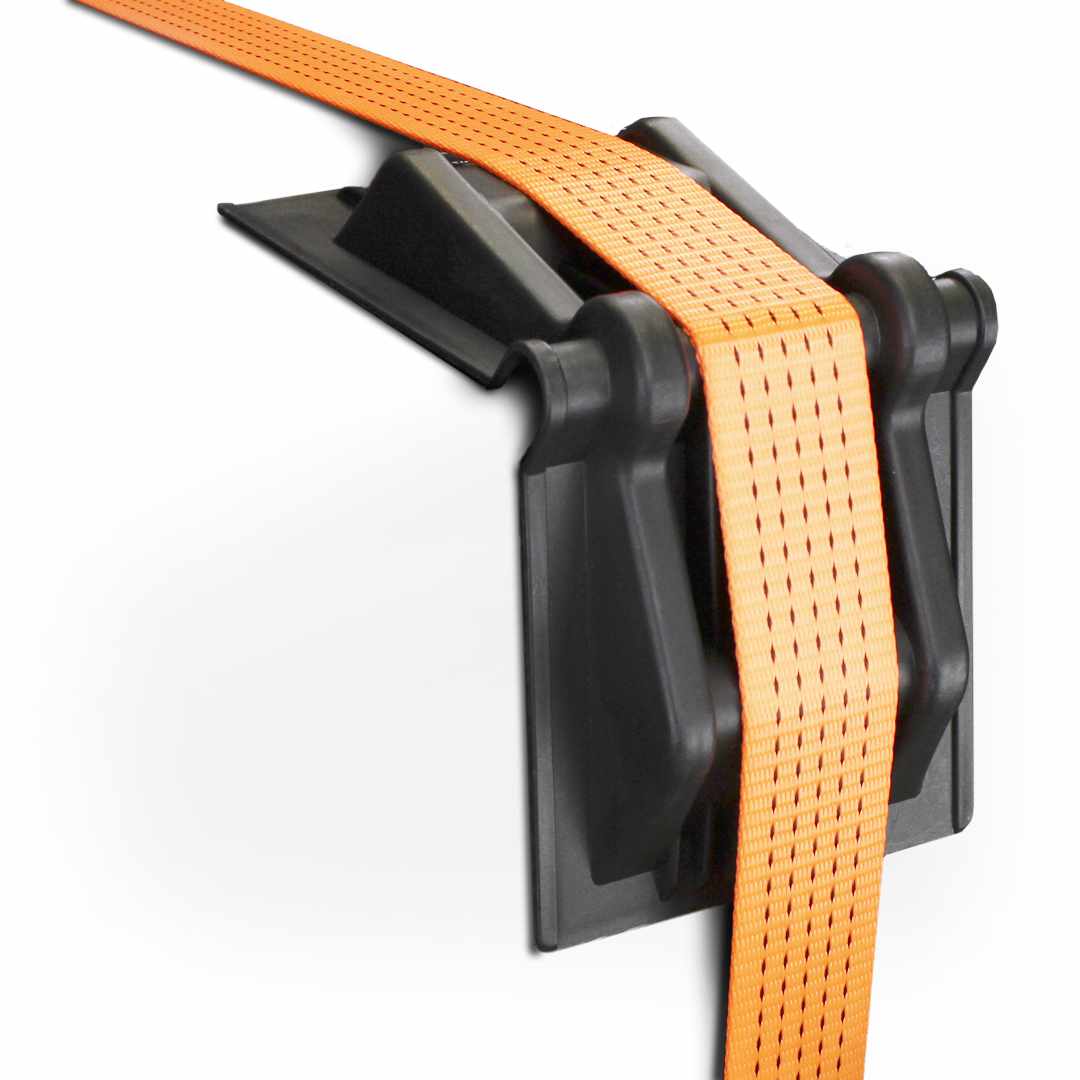

Corner Protector KSW 131,5×179.90E

✓ Corner protection made of PE
✓ Dimensions: 144 mm x 131.5 mm x 179 mm
✓ With guide rail for fixing the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 1315x179.90e Studio

Corner Protector KSW 135×135.78D

✓ Corner protection made of PE
✓ Dimensions: 103 mm x 135 mm x 135 mm
✓ With closed fixation for the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 78°
Kantenschutz KSW 135x135.78d Studio

Corner Protector KSW 135×135.90B

✓ Corner protection made of PE
✓ Dimensions: 90 mm x 135 mm x 135 mm
✓ With open fixation for the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 135x135.90b Studio

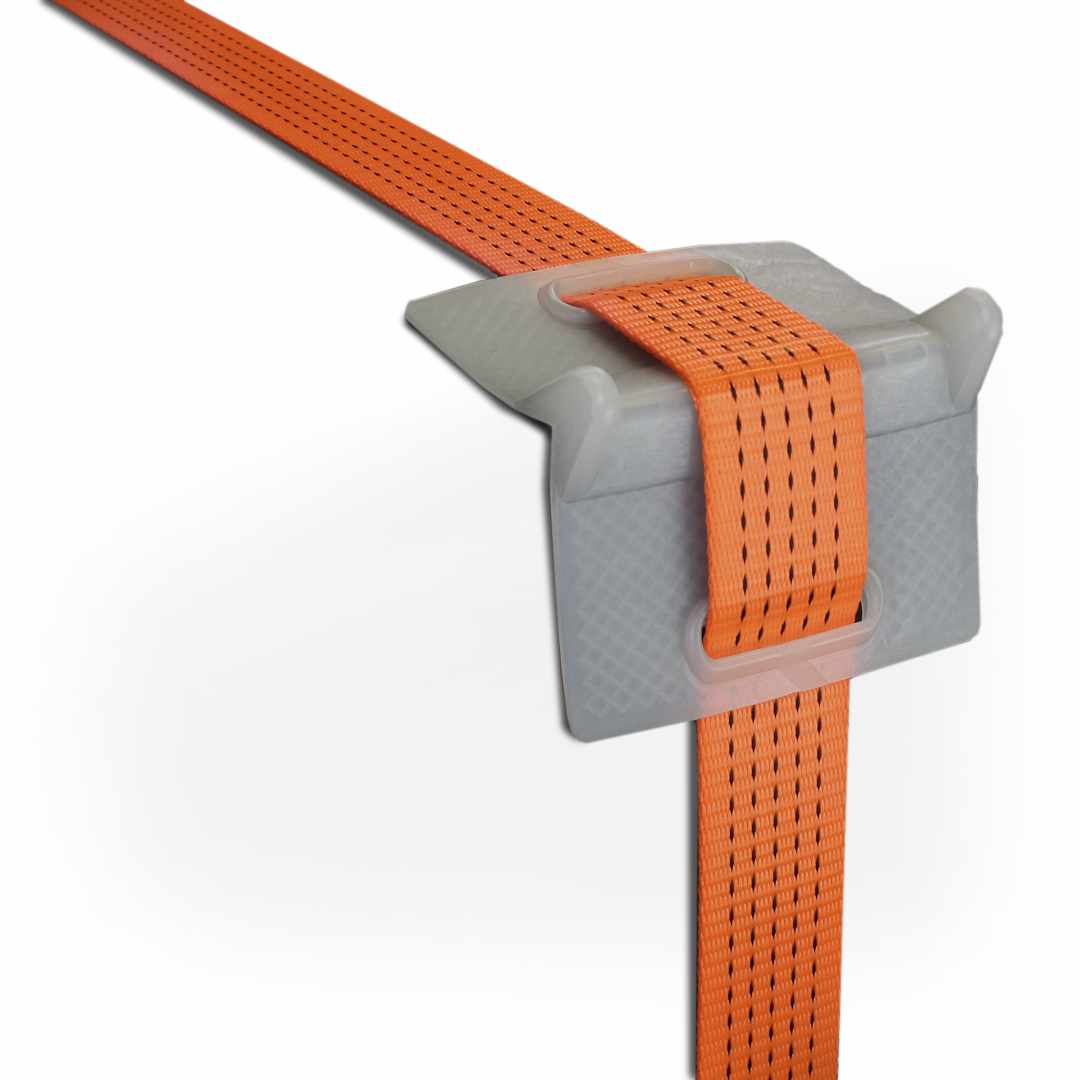

Corner Protector KSW 135×135.90D

✓ Corner protection made of PE
✓ Dimensions: 90 mm x 135 mm x 135 mm
✓ With closed fixation for the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 135x135.90d Studio

Corner Protector KSW 135×135.90D+

✓ Corner protection made of PE
✓ Dimensions: 100 mm x 135 mm x 135 mm
✓ With open fixation for the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 135x135.90d Studio

Corner Protector KSW 136,5×183.90A

✓ Corner protection made of HDPE in different colors
✓ Dimensions: width x 136 mm x 183 mm
✓ Especially easy to use
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 136x183.90a Studio

Corner Protector KSW 146×195.88C

✓ Corner protection made of PE
✓ Dimensions: 145 mm x 146 mm x 195 mm
✓ With closed fixation for the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 88°
Kantenschutz KSW 146x195.88c Studio

Corner Protector KSW 146×195.90E

✓ Corner protection made of PE or ABS
✓ Dimensions: 145 mm x 146 mm x 195 mm
✓ With guide rail for fixing the belt
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 146x195.90e Studio

Corner Protector KSW 170×170.90A

✓ Corner protection made of HDPE in different colors
✓ Dimensions: width x 170 mm x 170 mm
✓ Especially easy to use
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 170x170.90a Studio

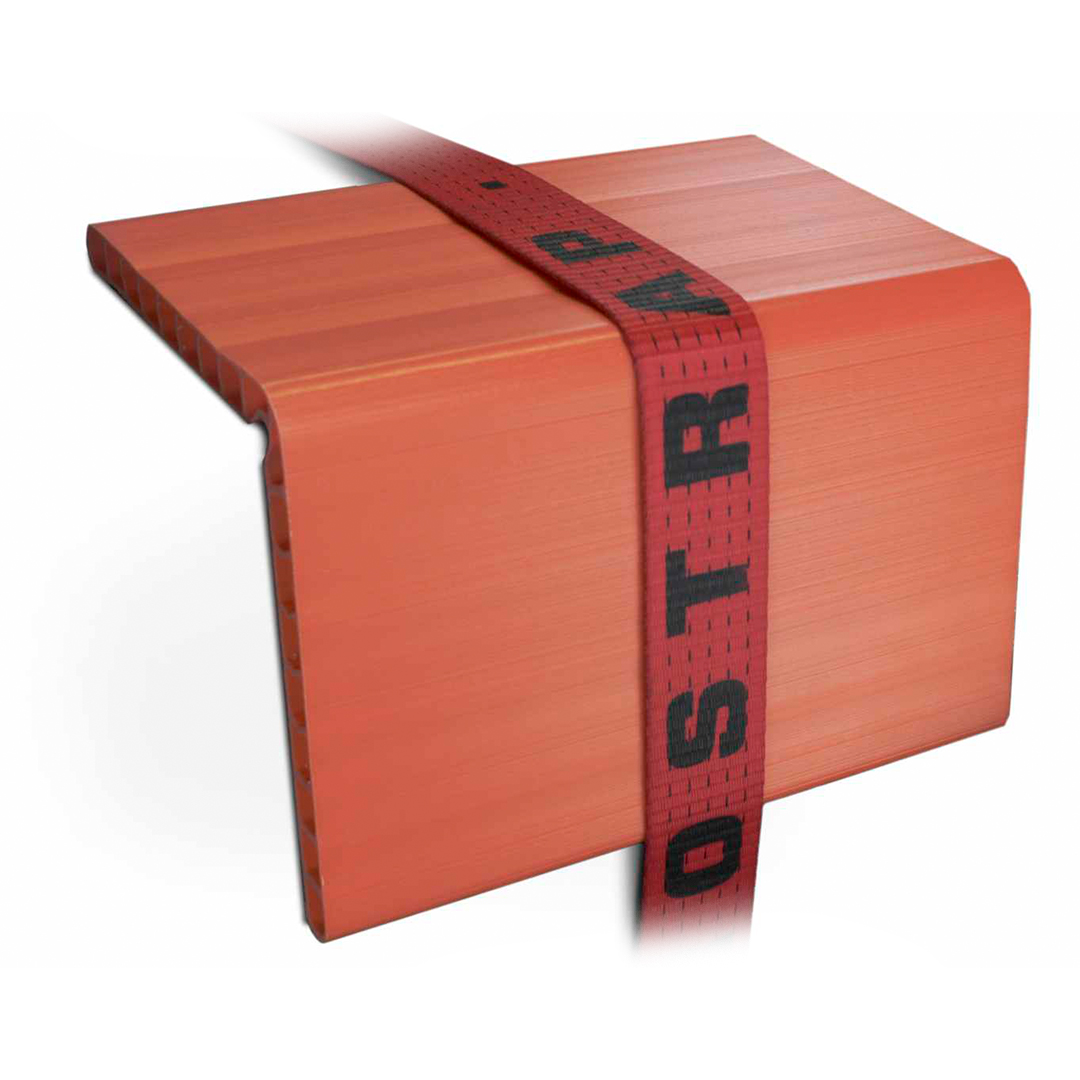

Corner Protector KSW 190×190.90A

✓ Corner protection made of HDPE in different colors
✓ Dimensions: width x 190 mm x 190 mm
✓ Especially easy to use
✓ For lashing strap width up to 50 mm
✓ Corner protection angle 90°
Kantenschutz KSW 190x190.90a Studio

Dunnage Bags

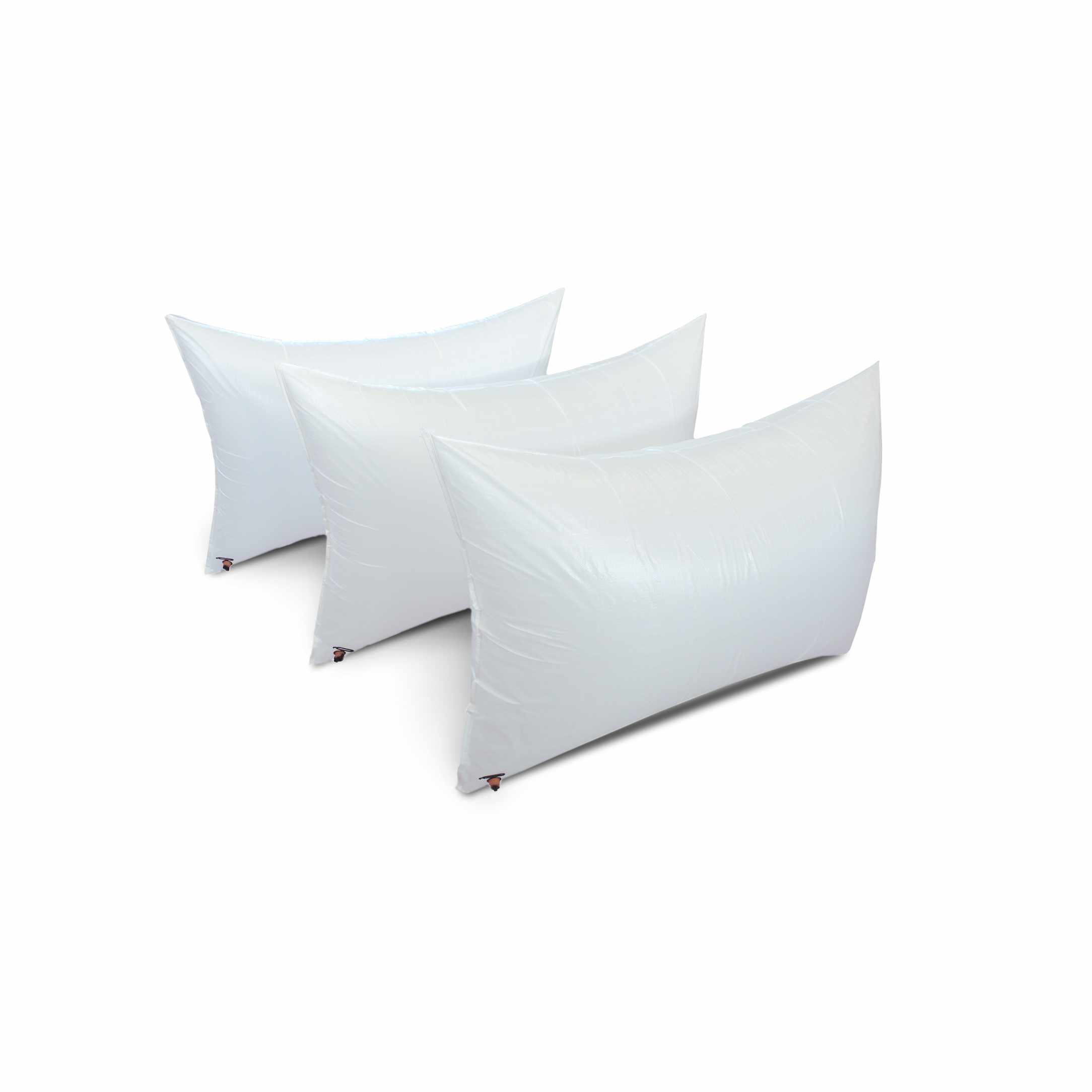

Dunnage Bags

✓ High resistance to moisture and high pressure
✓ Protects against pallet movements during transports
✓ Polyethylene inside | Polypropylene outside
✓ Valve protects against bursting of the jam
✓ More secure than anti-slip mats
Stausäcke Studio

Tier Cable

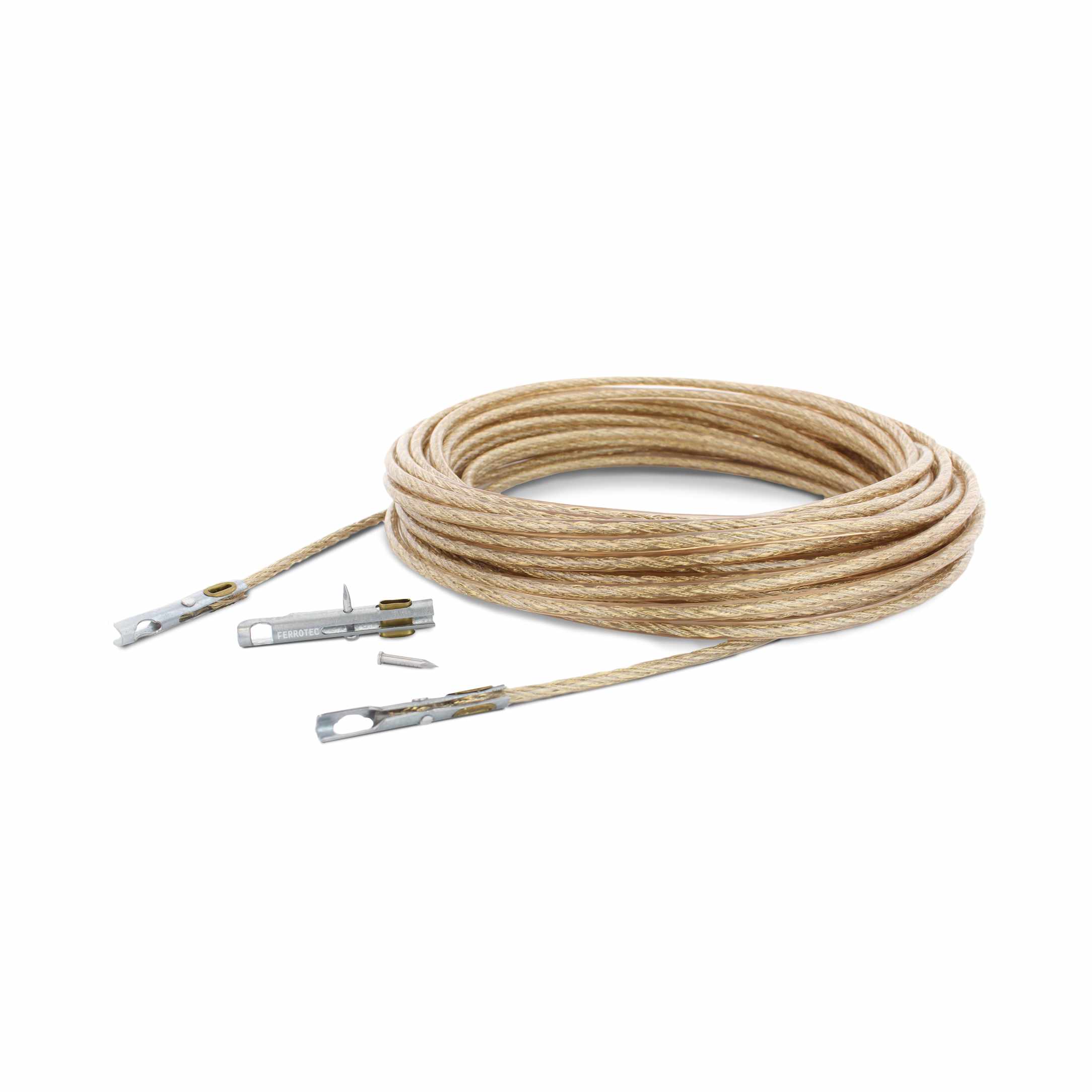

Customs-approved TIR cables

✓ Steel cable with plastic coating
✓ Sealing ends already installed
✓ Laser marking on sealing end possible
✓ According to Carnets TIR of November 14, 1975
✓ Ideal for sealing with FT Seal npc
Zollschnur Studio

Ratchet Straps

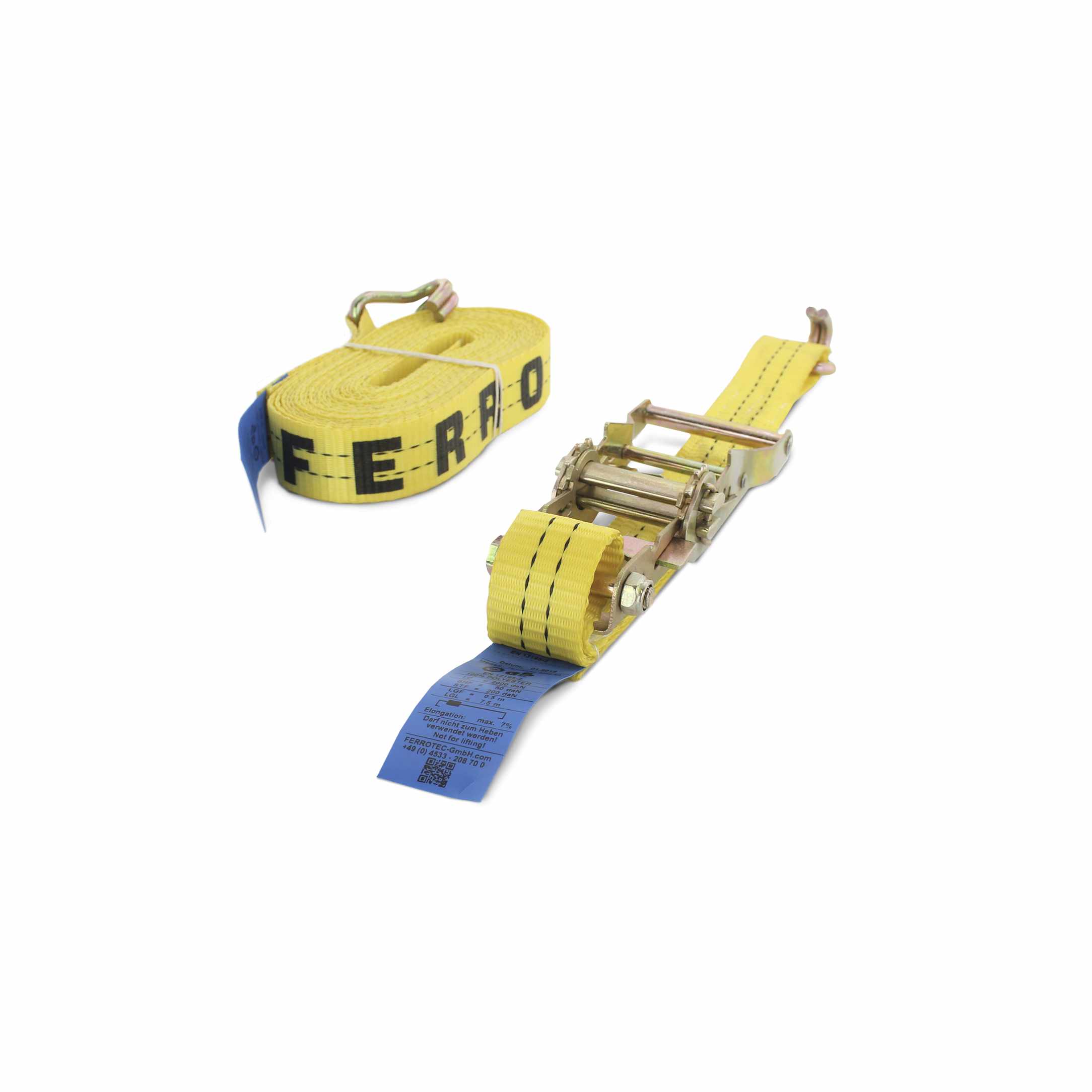

Ferrostrap 2000.8A

✓ Ratchet strap according to DIN EN 12195-2
✓ Lashing capacity is 2.000 daN
✓ Length of the lashing tape is 8 m (0,5 m + 7,5 m)
✓ With galvanized double J-hook
✓ Large selection of colors for the lashing tape
Zurrgurt Ferrostrap 2000.8a Studio

Ferrostrap 4000.10A

✓ Ratchet strap according to DIN EN 12195-2
✓ Lashing capacity is 4.000 daN
✓ Length of the lashing tape is 10 m (0,5 m + 9,5 m)
✓ With galvanized double J-hook
✓ Large selection of colors for the lashing tape
Zurrgurt Ferrostrap 4000.10a Studio

Ferrostrap 500.6B

✓ Ratchet strap according to DIN EN 12195-2
✓ Lashing capacity is 500 daN
✓ Length of the lashing tape is 6 m (0,5 m + 5,5 m)
✓ With powder-coated S-hook
✓ Large selection of colors for the lashing tape
Zurrgurt Ferrostrap 500.6b Studio

Ferrostrap 5000.10A

✓ Ratchet strap according to DIN EN 12195-2
✓ Lashing capacity is 5.000 daN
✓ Length of the lashing tape is 10 m (0,5 m + 9,5 m)
✓ With galvanized double J-hook
✓ Large selection of colors for the lashing tape
Zurrgurt Ferrostrap 5000.10a Studio

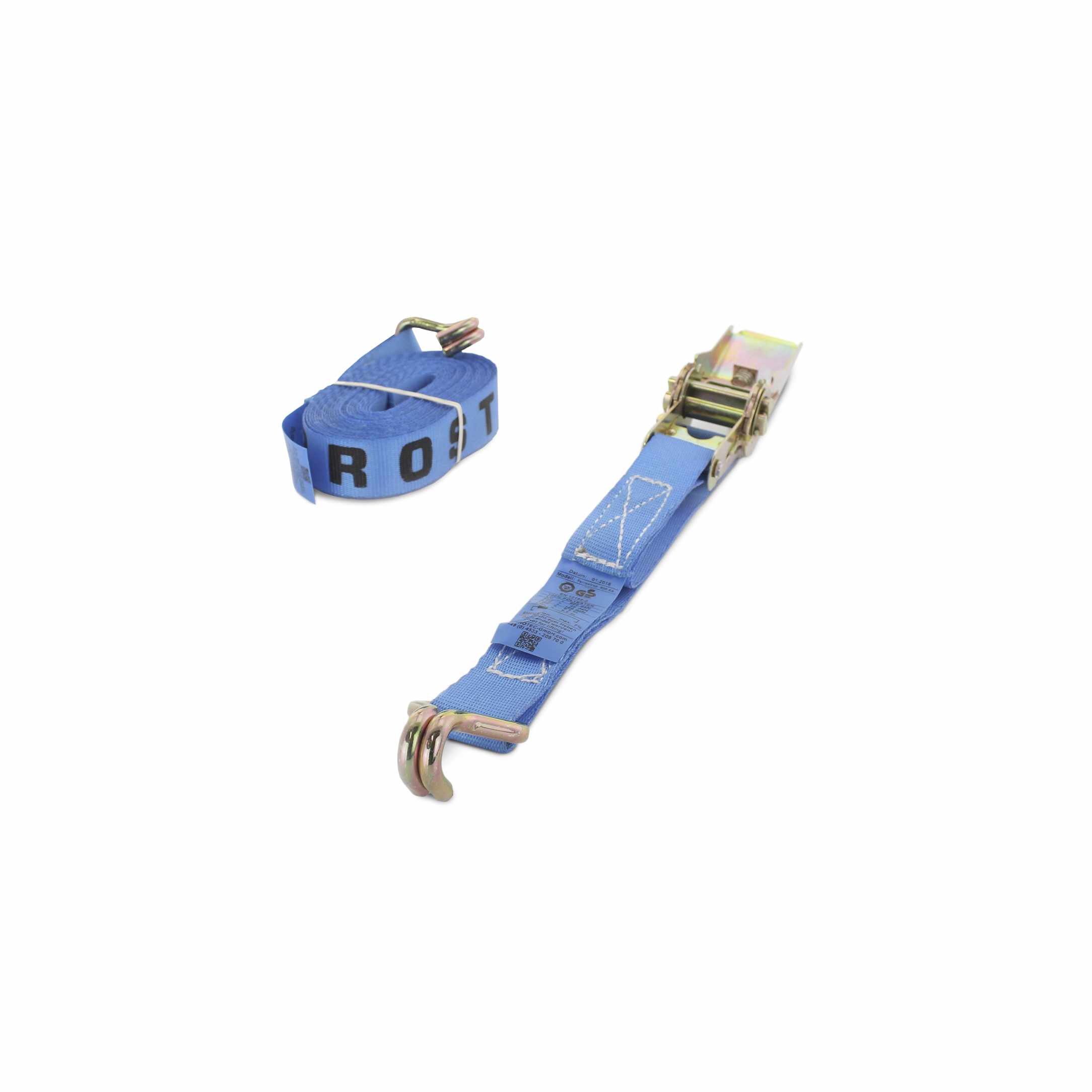

Ferrostrap 800.6A

✓ Ratchet strap according to DIN EN 12195-2
✓ Lashing capacity is 800 daN
✓ Length of the lashing tape is 6 m (0,5 m + 5,5 m)
✓ With galvanized double J-hook
✓ Large selection of colors for the lashing tape
Zurrgurt Ferrostrap 800.6a Studio

Protect your cargo with products from Ferrotec

During a transport it is often not enough to seal only the container or truck. Also inside the container or truck your cargo should be reliably protected against slipping, tipping or falling apart. For this reason, Ferrotec GmbH also offers products for load securing, such as lashing straps, dunnage bags, edge protectors or anchor points for refrigerated containers.

If you have any questions about load security, as well as all other types of sealing, please do not hesitate to contact us by phone at extension +49 (0) 4533 – 20870 0.

New: Take advantage of our free video service and let Ferrotec’s sealing experts explain the benefits to you. Make an appointment for a video conference today.
